The world of additive manufacturing, popularly known as 3D printing, is brimming with potential and transformative power. It’s a world where the boundaries of manufacturing are constantly being stretched, bringing intricate designs and previously impossible geometries to life. Whether it’s for prototyping, customized production, or even mass manufacturing, there’s a myriad of applications for 3D printing across diverse industries, from aerospace to healthcare. Amidst the array of types of 3D printing technology in this field, three stand out as pivotal – Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS). Each of these types of 3D printing offers a unique approach to additive manufacturing, presenting varying degrees of accuracy, surface finish, and material versatility.

Fused Deposition Modeling (FDM)

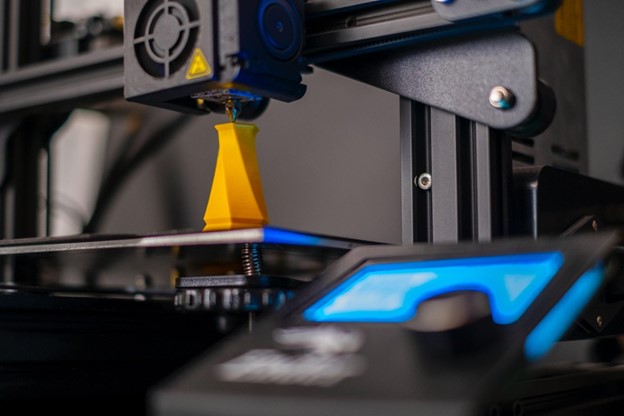

When people think of 3D printing, the image that typically comes to mind first is that of FDM printing, which is the sort of 3D printing technique that is the most widely known. Because of its user-friendliness, widespread availability, and competitive cost, it has become the technology of choice for do-it-yourselfers, educational institutions, and small businesses.

Extruding a thermoplastic filament via a heated nozzle is how FDM gets its work done. This melts the filament as it passes through the nozzle. After that, the molten plastic is deposited onto a build plate in a layer-by-layer fashion, following a path that has been pre-programmed and directed by a design that has been developed in CAD software. When the material is allowed to cool down and solidify, a stiff structure is created, and the item begins to take form.

The flexibility of FDM’s material options is one of the technology’s key selling points. Users have access to a diverse selection of plastics that can be used for printing, ranging from common materials like PLA and ABS to more specialized ones like Nylon or even composite filaments loaded with wood or metal particles. FDM’s versatility stems from its ability to print in a wide range of materials, making it useful for everything from prototyping to final product manufacturing. However, technology does have some limitations.

FDM has trouble printing intricate designs due to the size of the nozzle. Another drawback of the layer-by-layer method is that it often results in visible layer lines, requiring further processing steps to remove.

Stereolithography (SLA)

SLA is the most established form of 3D printing, though there are many others. The most popular method, FDM, is simpler and less exact than SLA. Even though it was pioneered in the 1980s, this printing technique is still widely recognized for the superior quality and smooth surface finish of the prints it produces.

The SLA method utilizes a vat of liquid photopolymer resin and an ultraviolet light source for the selective curing of the resin. The resin is cured in layers as the object is formed in three dimensions with the help of a system of mirrors that direct the beam of light. After each layer has cured, the build platform is elevated to create a way for the addition of fresh resin and to get ready for the next layer.

Detail and precision are SLA’s strong points, allowing it to create products with smooth surfaces and intricate geometries, which are challenging for FDM.

It is necessary to use support structures while it is being printed, which is the fundamental constraint of this method. Other post-processing steps, like as cleaning and additional curing, are also required in order to thoroughly harden the print. SLA, on the other hand, is a fantastic option for uses that call for a high level of detail, such as the production of jewelry, dental models, or small mechanical components.

Selective Laser Sintering (SLS)

SLS is among the types of 3D printing that excels in both the commercial and industrial spheres, making it stand out among its peers in this regard. SLS is a unique combination of versatility and performance that was first introduced in the middle of the 1980s, roughly about the same time as SLA.

The selective laser sintering (SLS) technique utilizes a high-power laser to combine powders of glass, ceramic, or plastic into a three-dimensional object. Based on the digital model, the laser selectively targets the powder material and traces the cross-section of the object that is located on top of the powder bed. Following the sintering of each layer, the build platform will move downward, a new layer of powder will be distributed on top, and the process will be repeated.

Prints made with SLS stand out because of their exceptional endurance as well as their capacity to produce intricate geometries without the requirement of support structures. Complex designs that include overhangs, undercuts, or interior channels can be generated with relative ease due to the fact that the unsintered powder supports the part while it is being printed. SLS printers are often more expensive than other types of printers, and they need to be used in a controlled environment. Because of these factors, its use is restricted to larger businesses and hobbyists. However, because of their potential to create sturdy and complicated parts, sectors such as aerospace, automotive, and medical device manufacturing favor using them as a material of choice.

Conclusion

As we’ve explored, types of 3D printing technology – FDM, SLA, and SLS – offer unique benefits and limitations. FDM, with its user-friendly approach and material versatility, is a favorite among hobbyists and educators. SLA, known for its superior surface finish and accuracy, is often chosen for highly detailed parts in fields like jewelry or dentistry. Meanwhile, SLS, with its high-performance parts and ability to print complex designs without supports, has carved a niche in industrial applications.

SLS, on the other hand, has found a niche in industrial applications due to its high-performance parts and the fact that they can be printed without support.

The entire potential of different types of 3D printing can only be realized after designers, producers, and amateurs have a firm grasp on the types of 3D printing available. These three are a solid foundation, but as the field of 3D printing develops, we may soon see other innovations that may completely change the face of additive manufacturing.
